How to install curtain box for ceiling ceiling with aluminum strip gusset plate

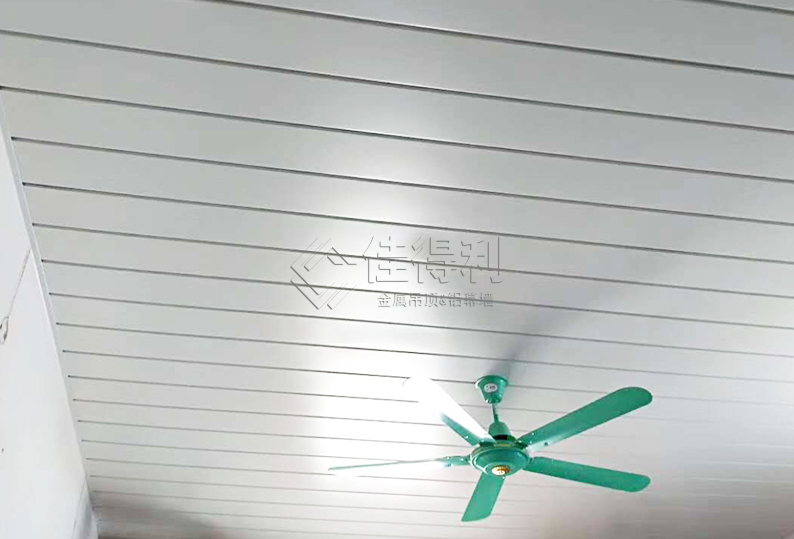

Aluminum gusset ceiling is used in the ceiling of refueling and filling stations, and the proportion of factory buildings, corridors, shopping malls, passages, gas stations, lobbies, stations, subways and other places is increasing, and the amount is also increasing. In order to achieve the unity and coordination of aluminum gusset ceiling, aluminum curtain boxes matching aluminum gusset ceiling are derived. How can aluminum gusset ceiling and aluminum curtain boxes be spliced together? Kaimai dares to try different types of material combinations, and with the mentality of sharing the results with people inside and outside the industry, arranges how to combine the aluminum strip gusset ceiling with the aluminum alloy curtain box for your reference.

Aluminum strip gusset ceiling ceiling mixed aluminum curtain box installation step 1:

First complete the aluminum strip gusset ceiling part:

Use an infrared level to measure the horizontal and vertical height reference line and install aluminum corners.Then connect the aluminum bar buckle ceiling ceiling pop-up boom distribution line, install the boom according to the height of the ceiling, with a spacing of 1m-1.2m, the end boom is not more than 300mm from the wall surface, and the keel spacing is 1m.Use aluminum strip gusset ceiling hanger to connect the aluminum strip gusset ceiling keel with the hanger rod, and adjust the joint to the level. Clip the aluminum strip gusset ceiling into the aluminum strip buckle keel.

       Aluminum strip gusset ceiling ceiling mixed aluminum curtain box installation step 2:

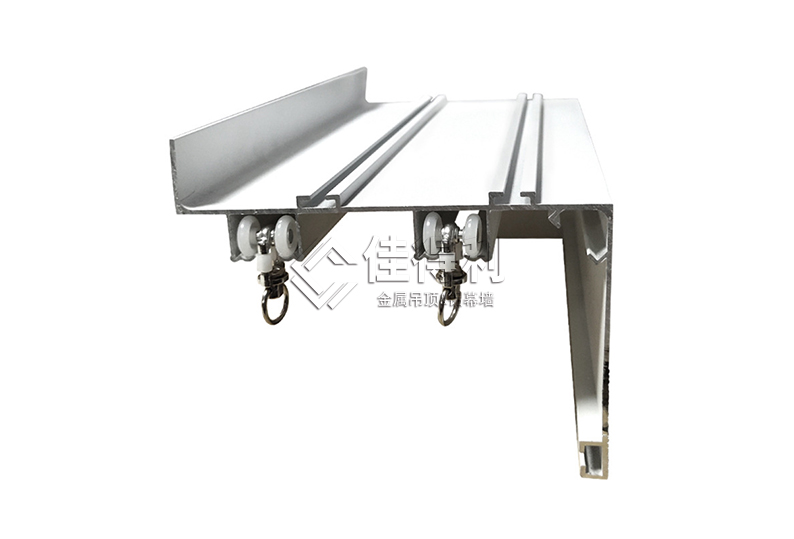

Aluminum curtain box installation method,First, the ceiling pull rod, it is recommended to control the spacing of one meter.Use 4-inch self-tapping screws to lock the aluminum alloy curtain box and fix it on the wall.Use the L-shaped aluminum alloy closing angle to retract the aluminum strip gusset ceiling ceiling and connect the aluminum alloy curtain box. The above is the aluminum strip gusset ceiling ceiling correct installation method of aluminum curtain box.
