Aluminum grille ceiling manufacturers talk about how to install large shopping malls ceiling?

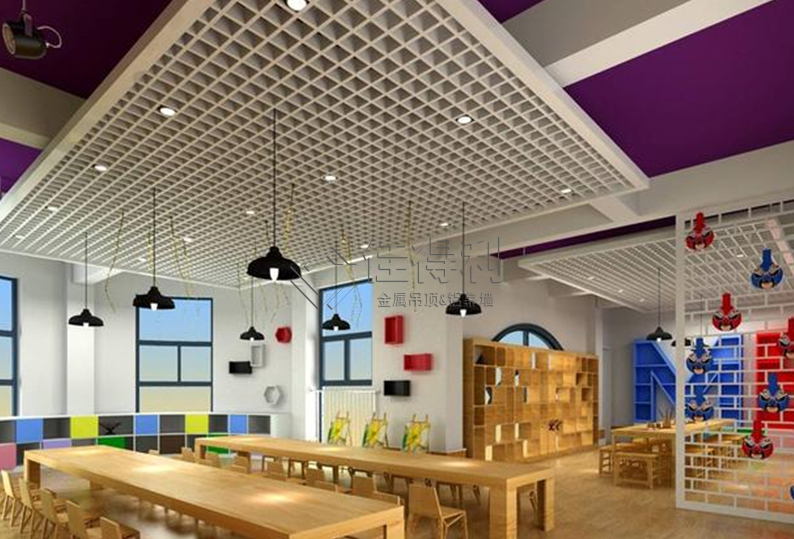

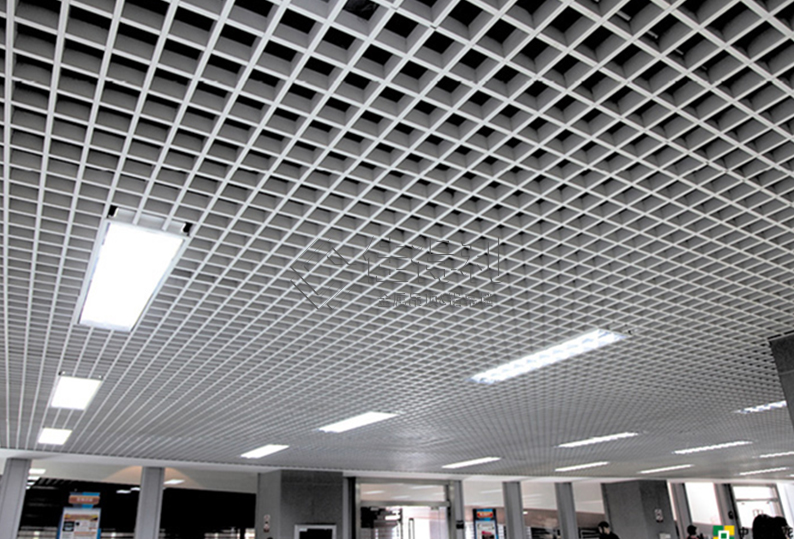

       Aluminum grille ceiling It is an open ceiling product. The structure of the main and auxiliary bones crisscross and snap together forms a square grid pattern. The aluminum grid is generally 2 meters long, and single and single can be spliced together. Therefore,Aluminum grille ceilingThe length of the project is not limited by any restrictions, no matter how large the project area is, it can meet its size requirements. Aluminum grille ceilingIt is widely used in some large-scale occasions, such as airports, exhibition halls, subway stations, large shopping malls, supermarkets, hospitals, underground parking lots, etc.

      How to install aluminum grille in large shopping malls Step 1: Install hanging ribs

According to the floor elevation horizontal line, according to the design elevation, along the wall, pop up the ceiling elevation horizontal control line and keel sub-control line. And pay attention to whether there is any contradiction with the elevation of hydropower, and if there is any contradiction, solve it in time.

After playing the ceiling elevation horizontal line, determine the elevation of the lower end of the hanger rod, weld the upper part of the hanger rod with embedded steel bars or fix it into the structure roof with expansion bolts while drilling holes in angle steel, and weld it firmly with the hanger rod Ф 10 galvanized steel wire. After hanging the iron wire, thread the iron wire into the adjusting spring sheet, which is required to be galvanized. The vertical and horizontal spacing of the boom is about 1200mm.

       How to install aluminum grille in large shopping malls Step 2: Pre-installed grille

Pipeline layout, calibration and painting in the shed: after installation and calibration of water and electricity pipelines in the ceiling, black paint shall be painted on the structural ceiling and pipelines for 1-2 times. Separate the grid ceiling (110*110) strips of specifications underground first, and pre-assemble them into groups according to their specifications. Pay attention to the smooth and clean ground, and check the splicing flatness and firmness of the joist.

     How to Install Aluminum Grille in Large Shopping Mall Step 3: Hoisting Grille

       将预装好的每组格栅天花，装在直径Ф4mm镀锌铁线吊钩上，将吊钩一端穿进主骨孔内，一端固定在弹簧片上。每组Aluminum grille ceiling Connect each grid bar through a special connector.

      How to Install Aluminum Grille in Large Shopping Mall Step 4: Leveling

After connecting the whole grid ceiling, straighten the wire at the bottom of the joist according to the control line on the wall, and adjust it to the required level by adjusting the spring sheet.

     How to Install Aluminum Grille in Large Shopping Mall Step 5: Install Edge Keel

Installation of side keels: embed anti-corrosion wooden wedges around the wall according to the ceiling elevation line and fix 25*25 side keels with cement nails, with a fixed spacing of not more than 400mm, and the joint angle of yin and yang angles of side keels is 45, requiring that the side keels should be fixed firmly and smoothly.
