凯麦Aluminum square ceilingInstallation steps and precautions

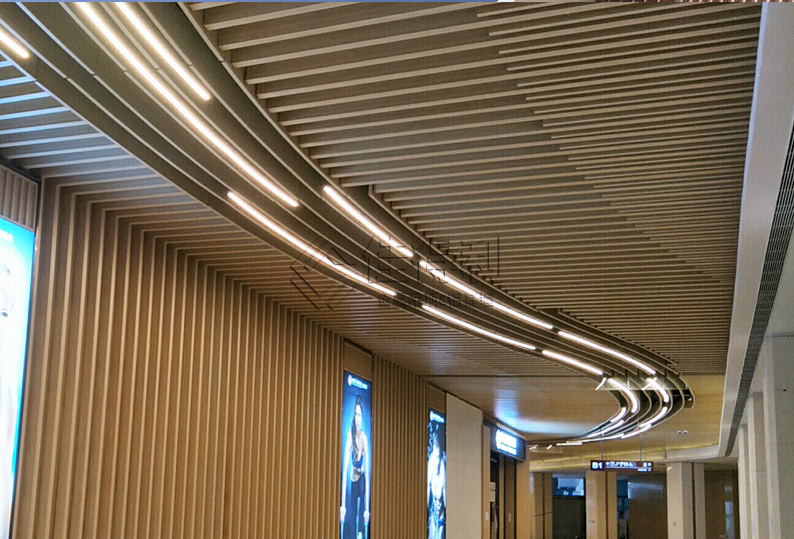

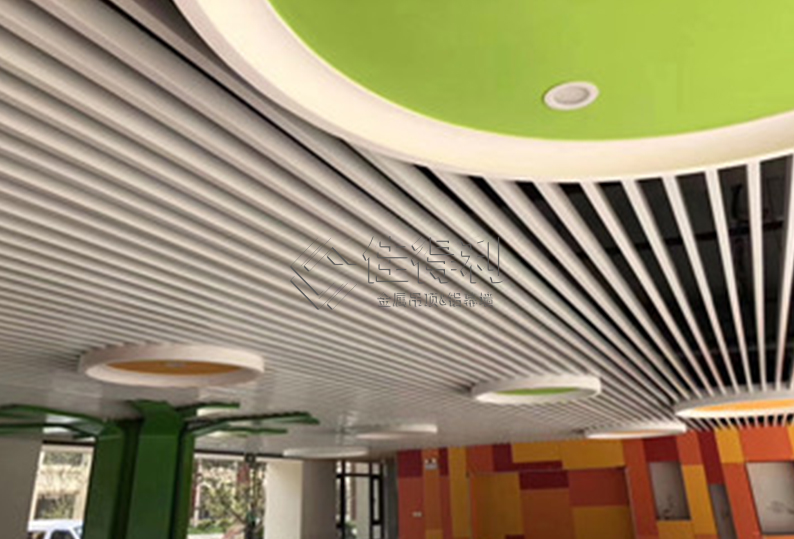

       随着社会的发展，越来越多人对装饰装修有了更丰富的追求，许多铝天花装饰材料也随着人们的需求应运而生，在这其中Aluminum square ceilingIt seems to become the leader of ceiling decoration materials overnight, and its application scope is more and more wide.Aluminum square ceilingIt has the characteristics of strong direction, strong openness, smooth lines, novel and unique. With different colors, hanging at different heights, it produces a misplaced beauty, introduces different lighting effects, and reflects each other brightly, showing a high-end and unique decorative style. Let Xiaobian answer for you aboutAluminum square ceilingRelated installation steps.

       广东凯麦Aluminum square ceilingInstallation steps:

1. setting-out: according to the floor elevation horizontal line, according to the design elevation, along the wall around the ceiling elevation horizontal line, and find out the room center point, and along the ceiling elevation horizontal line, with the room center point as the center to draw the keel sub-position line on the wall.

2. and installation of main keel boom: after the horizontal line of ceiling elevation and keel position line are played, determine the elevation of the lower end of the boom, install the pre-processed boom, and fix the boom on the ceiling with expansion bolts with diameter 8. The diameter of 8 round steel is selected for the hanger rod, and the spacing between the hanger bars is controlled within the range of 120mm.

3. installation of main meridians: the main keel is generally C38 light steel keel, and the spacing is controlled within 1200mm. During installation, the hanger matched with the main keel shall be connected with the boom.

4. installation of edge keel: according to the requirements of ceiling clear height, the 25 × 25mm baking varnish keel shall be fixed around the wall with cement nails, and the spacing between cement nails shall not be more than 300mm.

5. and installation of secondary keel: according to the specifications and dimensions of aluminum ceiling, the secondary keel matched with the plate is installed, and the secondary keel is hung on the main keel through hanging parts. When the length of the secondary keel needs to be extended, use the secondary keel connector to connect the opposite ends while hanging the secondary keel, and straighten it first and then fix it.

6. installation metal plate: when installing aluminum ceiling, pull a datum line perpendicular to the secondary keel direction at the middle position of the assembly area, and install it to both sides with the datum line. When installing, take it lightly, press both sides of the square plate gently along the order of the flanging parts, and then push it tightly after clamping into the keel.

7. cleaning: after the installation of aluminum ceiling, the board surface shall be wiped clean with cloth, and there shall be no dirt and fingerprints.

       八、吊顶工程验收时应检查下列文件和记录：(1)吊顶工程的施工图、设计说明及Other设计文件；(2)材料的产品合格证书、性能检测报告、进场验收记录和复验报告；(3)隐蔽工程验收记录；(4)施工记录。

      铝方通（U型铝方通、U型槽）是近几年来生产的吊顶材料之一，Aluminum square ceilingWith an open field of vision, ventilation, ventilation, its bright and tidy lines, clear, reflecting the simple and clear modern style, simple and convenient installation and disassembly, has become the main product of the popular decoration market in recent years.

责任编辑：凯麦Aluminum square ceilingManufacturer-Huang Liping 13074271912

This article labels: aluminum square production, wood grain aluminum square, aluminum square specifications, aluminum square ceiling, kaimai aluminum square manufacturer
