Fluorocarbon honeycomb aluminum veneerDetailed installation method

       Fluorocarbon honeycomb aluminum veneerThe surface is made of aluminum alloy plate after fluoride carbon roller coating, the product has more outstanding characteristics, widely used in building curtain wall and interior and exterior decoration. It is also due to the company\'s professional and comprehensive production process protection. Therefore, different composite processes can be used to make products according to customer requirements and actual conditions. Let\'s talk about it by the small editor of Kaimai.Fluorocarbon honeycomb aluminum veneerDetailed installation method!

       Fluorocarbon honeycomb aluminum veneerInstallation process:

1. Measure the anchoring degree of laying line anchor at the supporting point, the stress combination of the wallboard and the combination sealing, water filling, removing the protective film and cleaning the curtain wall surface. The following issues should be noted during installation. The measured release line should match the measured release line of the main structure, and the horizontal elevation angle should be drawn layer by layer from the ground to avoid the accumulation of errors. The wind force should not be greater than level 4, the ink line should be sprayed out along the outer edge of the building, or the bottom line of the curtain wall should be set with the piano line. A certain distance from the reference line is the curtain wall plane, and the front and rear positions of the pillars are determined as the basis of this line, thus determining the position of the entire curtain wall. The two columns are generally vertical components, which is one of the keys to curtain wall construction.

Its accuracy and quality will affect the installation quality of the entire curtain wall. The allowable deviation between the plane axis of the curtain wall of the connecting part of the building and the outer plane axis should be controlled within 2mm, especially the curved, circular and enclosed curtain wall of the building plane; The distance between the inner and outer axes will affect the circumference of the curtain wall and should be taken seriously. The three columns can be 1 or 2 stories high and 7.5 meters long. The joint should have a certain gap, not less than 10mm. Sleeve connection method is adopted. If the connection between the connection part and the embedded part is two layers high or a whole root, the connection point between the column and the main structure can be appropriately increased to improve the frame stiffness of the curtain wall. Hinged and rigid connections are used. The hinge joint only resists horizontal forces. When the connection point is masonry, the connection can not use expansion bolts, and should be fixed by wall bolts. In addition to the horizontal resistance, a vertical force should be assumed and transmitted to the main structure.

3. The crossbar is generally a horizontal member, which is a segmented connection embedded in the column. The connectors at both ends of the beam are installed in the predetermined position of the column. The cross beam is sleeved on the joint and is not fixed. The discharge length is intentionally shortened during manufacturing to make the joint have a certain gap. Since the column is connected by a sleeve, there is a gap at the joint, and there is also a gap between the beam and the column, so that the column and the beam can be installed to form a frame with a certain deformation capacity. In order to adapt and eliminate the influence of building deformation and temperature deformation, improve its carrying capacity. However, if the beam is bent, folded or folded, in order to prevent the beam from falling off, the beam and the joint should be fixed. The framing of aluminum honeycomb curtain walls shall be aluminum profiles with anodized surfaces and steel shall not be used. Because the frame and the wall plate are two kinds of metal, it is easy to produce electrode potential difference, which makes the aluminum plate corrode. Aluminum profiles used in the aluminum honeycomb curtain wall frame of high-rise buildings shall have a thickness of not less 3mm.

4. Stainless steel screws or galvanized screws should be used when installing the wallboard. Ordinary screws should not be used. Each vertical material of the frame system must be firmly connected with the embedded iron parts of the main structure, and the horizontal and vertical materials must be fixed with stainless steel bolts to ensure the durability of the installation. In addition to the decorative effect of the facade, the joint width of the aluminum honeycomb panel should be regarded as the thermal expansion after thermal expansion. Joints must be sealed with weatherproof adhesive joints to prevent gas penetration and rain leakage. When embedding the weathered adhesive, pay attention to: thoroughly clean the gap between the aluminum honeycomb panels to ensure that the bonding surface is clean and dry. In order to adjust the joint depth and avoid three-sided bonding, the joint is filled with tetrachloroethylene foam material (small round strips). After gluing, the joint surface should be ground flat and excess glue removed. Pay attention to the maintenance of glue after injection molding. The glue should not be contaminated by dust and scratches until it has hardened completely.

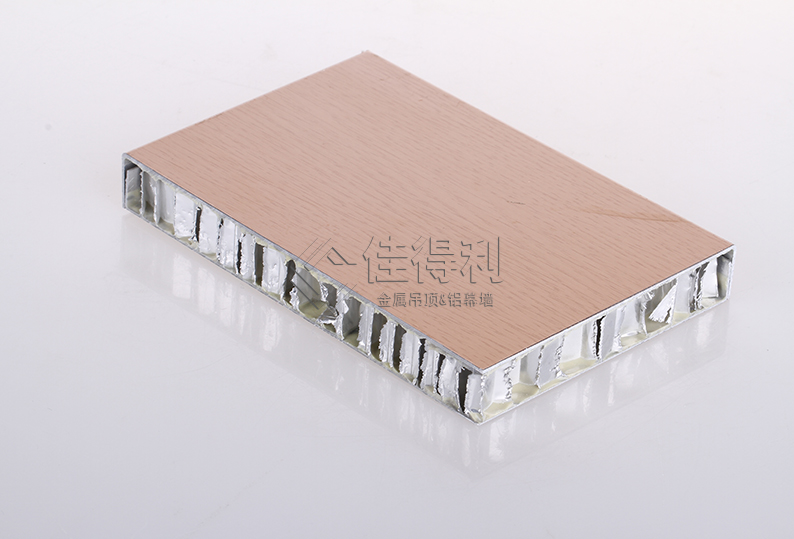

       铝蜂窝芯经过与铝面底板复合后，其空间内部是处于铝板与蜂窝结构密封状态的空气，空间内部阻止了空气的流动。热量和声波的传播受到极大的限制，所以Fluorocarbon honeycomb aluminum veneerIt has good sound insulation and heat insulation properties. Honeycomb aluminum veneer is more and more widely used in industry.

Aluminum veneer profiles have a highly respected position in architectural decoration materials. Camer Xiaobian also highly recommends the use of aluminum veneer curtain walls when decorating the exterior walls of the room. I hope today\'s sharing can be helpful to you!
