How to install the purchased aluminum grille is the most worry-free and convenient？

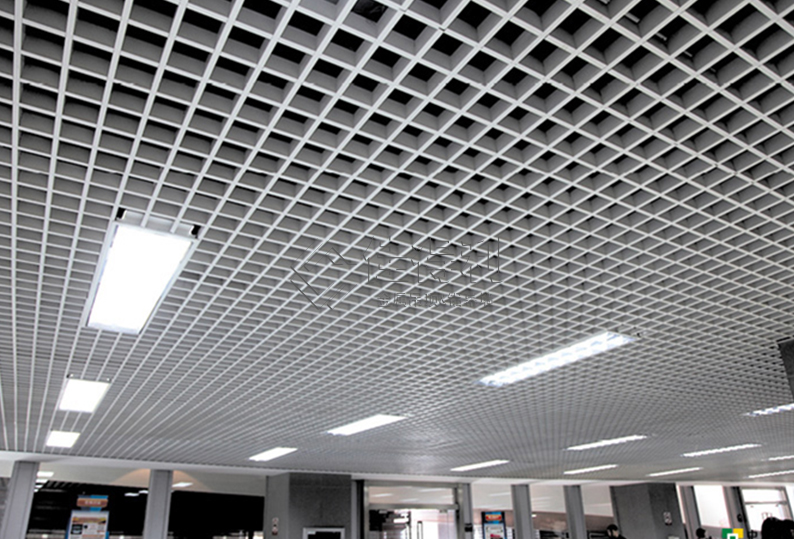

       Aluminum grille It is an open ceiling product. The structure of the main and auxiliary bones crisscrossed and buckled together forms a square grid pattern. The aluminum grille is generally2米长，单根与单根之间能相互拼接在一起，所以，Aluminum grille The length of the project is not subject to any restrictions, regardless of the size of the project area, can meet its size requirements. Aluminum grille is widely used in some large occasions, such as airports, exhibition halls, subway stations, large shopping malls, supermarkets, hospitals, underground parking lots and so on.

How to install the aluminum grille is the most worry-free and convenient step: install the hanger bar

According to the floor elevation horizontal line, according to the design elevation, along the wall, pop up the ceiling elevation horizontal control line and keel sub-control line. And pay attention to whether there is any contradiction with the elevation of hydropower, and if there is any contradiction, solve it in time.

After playing the horizontal line of the ceiling elevation, determine the elevation of the lower end of the hanger rod, weld the upper part of the hanger rod with embedded steel bars or fix it into the top plate of the structure with angle steel while punching holes and expansion bolts, while connecting with the hanger rod.Ф 10 Galvanized steel wire shall be welded firmly. After the wire is hoisted, the wire shall be inserted into the adjusting spring plate, which shall be galvanized. The vertical and horizontal spacing of the boom is about 1200mm.

How to install the aluminum grille is the most worry-free and convenient step 2: pre-install the grille

Layout, calibration and painting of pipelines in the ceiling: after installation and calibration of water and electricity pipelines in the ceiling, paint on the structural ceiling and pipelines.1-2 times black paint. Separate the grid ceiling (110*110) strips of specifications underground first, and pre-assemble them into groups according to their specifications. Pay attention to the smooth and clean ground, and check the splicing flatness and firmness of the joist.

How to install the aluminum grille is the most worry-free and convenient step 3: hoisting the grille

将预装好的每组Aluminum grille , installed in diameterФ the hook of 4mm galvanized iron wire, put one end of the hook into the main bone hole, and fix one end on the spring plate. Each set of joists connects each raster bar by a dedicated connector.

How to install the aluminum grille is the most worry-free and convenient step 4: leveling

After connecting the whole grid ceiling, straighten the wire at the bottom of the joist according to the control line on the wall, and adjust it to the required level by adjusting the spring sheet.

How to install the aluminum grille is the most worry-free and convenient step 4: install the side keel

Install the side keel: embed anti-corrosion wooden wedges around the wall according to the ceiling elevation line and fix them with cement nails.25*25 side keel, fixed spacing is not more than 400mm, side keel yin-yang angle junction splicing angle into 45, requires the side keel to be fixed firmly, flat.
